Printing

Print Technology

Fused Deposition Modeling（FDM）

Build Volume

Single Extrusion:  600*600*600 mm
  Dual Extrusion:  540*600*600 mm

Number of Nozzles

Double

Layer Resolution

0.05 mm

Filament Diameter

1.75 mm

Filament Compatibility

PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc.

Nozzle Diameter

0.4mm (0.3 0.5 0.6 0.8 1.0mm)

Print File Type

STL, OBJ, AMF, Gcode

Temperature

Ambient Operating Temperature

15 ℃~32 ℃

Max. Nozzle Temperature

420 ℃

Max. Bed Temperature

100 ℃

Max. Chamber Temperature

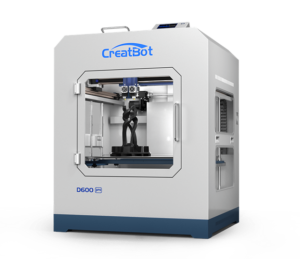

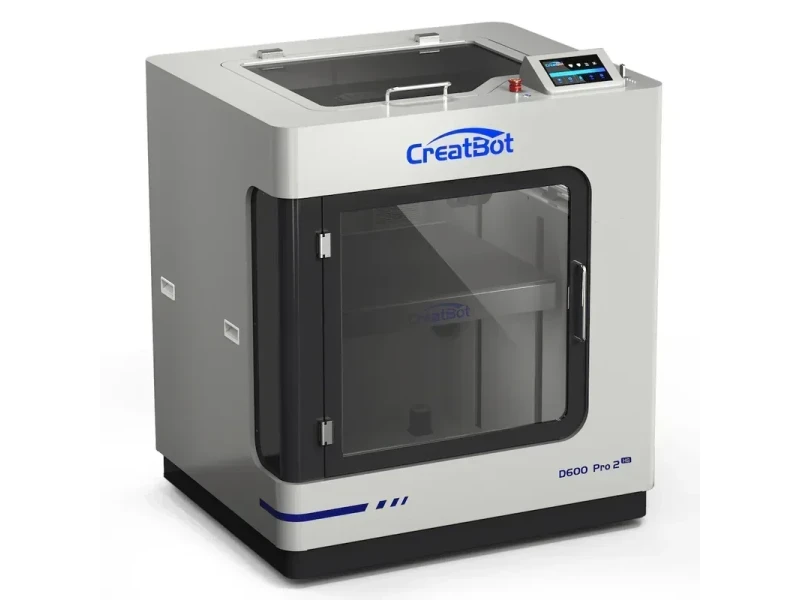

70 ℃ D600  Pro

Filaments Drying Temperature

45 ℃/65 ℃ D600  Pro

Mechanical

Construction

Power-Coated Steel, Aluminum Casting for Motion Components, POM

Build Plate

Aviation aluminum plate

Build Plate Leveling

Factory Leveled, Adjust Manually Automatic D600  Pro

Extruder

Directly Drive

Stepper Motors

1.8° Step Angle with 1/16 Micro-stepping

X Y Positioning Precision

5.08 μm

Z Positioning Precision

1.25 μm

Speed

Best Printing speed

45 mm/s

Max. Printing speed

120 mm/s

Electrical

Power Requirements

200V-240V / 50-60Hz ( D600 / D600  Pro )

Screen

4.3” Touch Screen with Multi-language

Rated Power

D600: 1500W, D600 Pro: 4900W

Storage Media

USB Disk

Connectivity

USB

Software

Software

CreatWare, Simplify 3D, Cura, Slic3r, etc

Supported File Types

STL,OBJ,AMF

Operating Systems

Win7/8/10, macOS

Special Function

Outage Restored

Save data when power is off

Filament Detection

Pause printing when filament run out

Automatic Shut-down

Turn off the power automatically when printing is complete

Size & Weight

Product Dimensions & Weight

915*845*1085mm 125kg

Packing Size & Weight

940*1010*1320mm 165kg(Pallet)

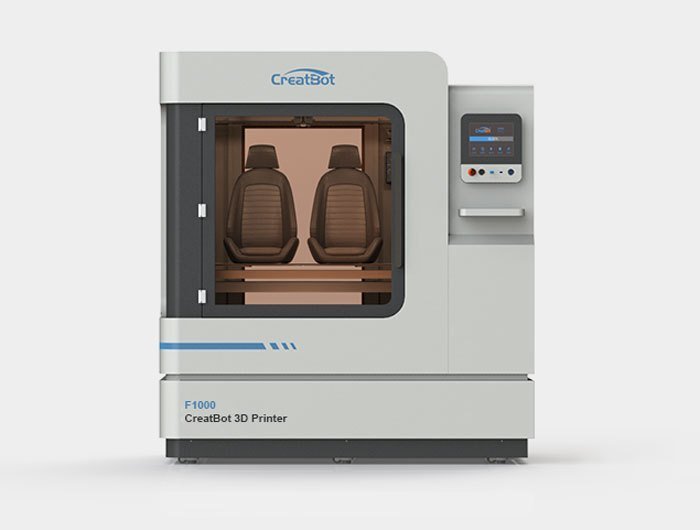

Printing

Print Technology

Fused Deposition Modeling

Build Volume

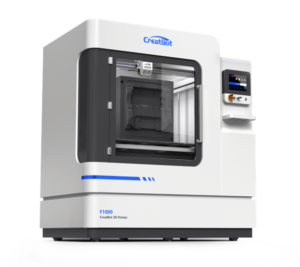

Single Extrusion: 1000*1000*1000 mm
  Dual Extrusion:  940*1000*1000 mm

Number of Nozzles

Auto-rising dual extruders

Layer Resolution

0.05 mm

Filament Diameter

1.75 mm

Filament Compatibility

ABS,PLA,Carbon Fiber,PETG,Nylon,PC,etc.

Nozzle Diameter

1.0 mm（0.4~1.5 mm）

Print File Type

STL, OBJ, AMF, Gcode

Temperature

Max. Nozzle Temperature

420 ℃

Max. Bed Temperature

100 ℃

Hot Chamber Temperature

60 ℃

Filament Dry Room Temperature

45 ℃/65 ℃

Mechanical

Construction

Power-Coated Steel, Aluminum Casting for Motion Components, POM

Build Plate

Aviation aluminum plates

Build Plate Leveling

Automatic

Extruder

Smart Dual Extruders

Stepper Motors

1.8° Step Angle with 1/16 Micro-stepping

X Y Positioning Precision

0.011 mm

Z Positioning Precision

0.0025 mm

Software

Software

CreatWare, Simplify 3D, Cura, Slic3r, etc

Supported File Types

STL,OBJ,Gcode,AMF

Operating Systems

Win7/8/10, macOS

Special Function

Outage Restored

Save data when power is off

Filament Detection

Pause printing when filament run out

Automatic Shut-down

Turn off the power automatically when printing is complete

Camera control

Camera remote monitoring and real-time control of the printing process

Speed

Best Printing speed

60 mm/s

Max. Printing speed

120 mm/s

Electrical

Power Requirements

220~240 V, 50~60 Hz

Screen

9.7-inch full color touch screen independent operating system (multi-language)

Rated Power

Printer: 4000W, Chamber: 4500W

Storage Media

U Disk

Connectivity

USB

Size & Weight

Product Dimensions & Weight

1740*1300*1920mm 550kg

Packing Size & Weight

1910*1460*2190mm 640kg

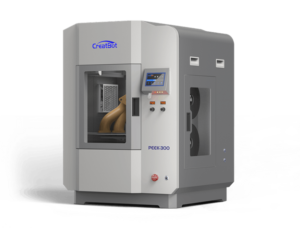

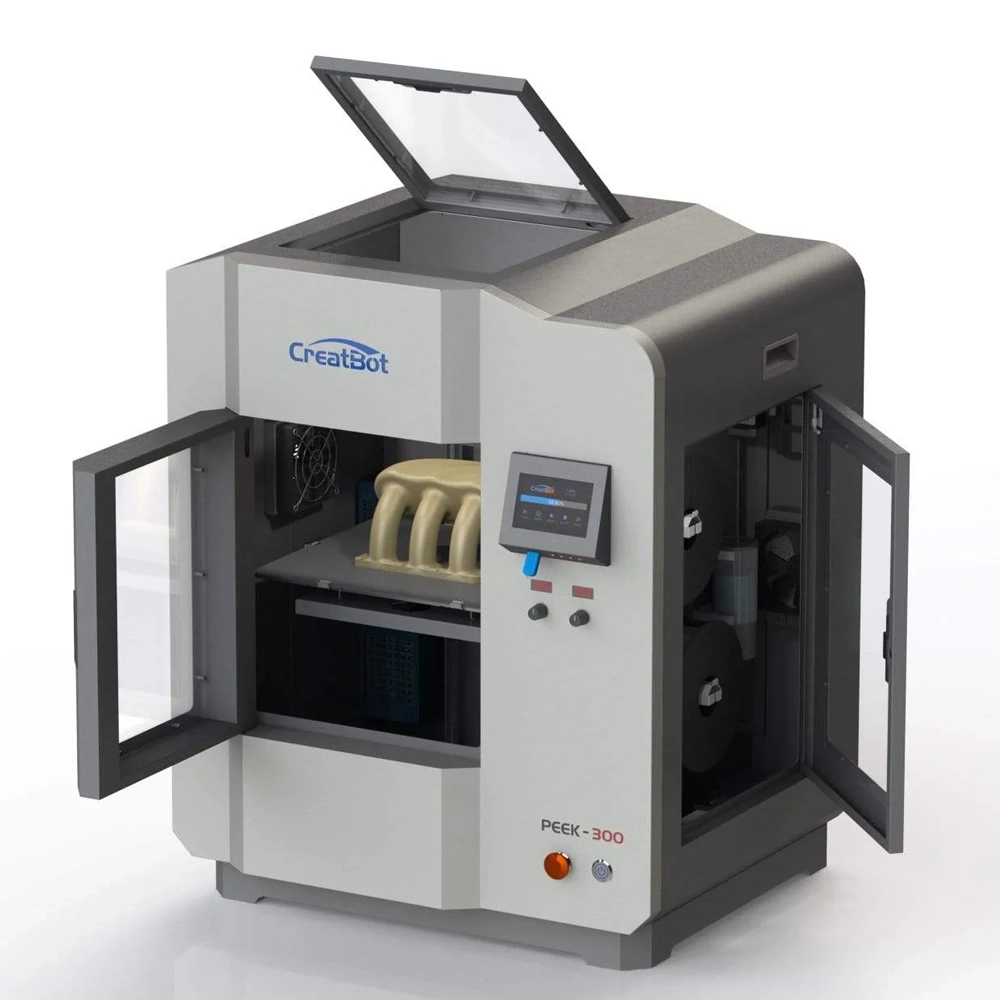

Printing

Build Volume

Single Extrusion:  300*300*400 mm
  Dual Extrusion:  240*300*400 mm

Filament Diameter

1.75mm

Number of Nozzles

Dual Extruder

Print Speed

10-120mm/s

Nozzle Diameter

0.4mm (0.3~1.0mm optional)

Filament Compatibility

Engineering Plastics:
PLA, ABS, ASA, PC, Nylon, PETG, PVDF,TPU,Carbon Fiber；
High temperature Material:
UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM)；
Ultra-performance material:
PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Software

Software

Creatware, Simplify3D, Cura, Slic3r

Operating Systems

Win7/8/10

Print File Type

STL, OBJ, AMF, Gcode

Special Function

Outage Restored

Save data when power is off

Filament Detection

Pause printing when filament run out

Direct Annealing System (DAS)

Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.

Heat insulation

Triple heat insulation

Emergency stop switch

Support emergency stop

High temperature accessories

High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.

Temperature

Nozzle Max. Temperature

500℃

Chamber Temperature

120℃

Platform Max. Temperature

200℃

Direct Annealing Temperature

0~400℃

Mechanical

Cooling

Air pump cooling & water cooling

Platform

PCB aluminum + PEEK print board

Positioning Precision

X Y axis 0.0127mm, Z axis 0.00125mm

Extruder

Directly Drive

Machine Construction

Fully enclosed hot chamber

Bed Leveling

Manually/Automatic

Electrical

Input Power

200V~240V, 20A

Rated Power

4600W

Screen

4.3” full color touch screen, multi-language

Print Method

USB Connectivity/USB Disk

Size & Weight

Machine Size

650*600*750 mm

N.W

100 kg

Packing Size

820*720*1080mm

G.W

130 kg
