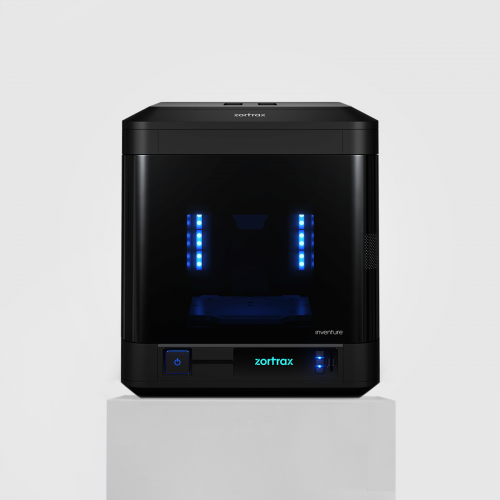

Compact tool for your inventions
DEVICE
|
Build volume |
135 x 135 x 130 mm (5.3 x 5.3 x 5.1 in) |
|
Nozzle diameter |
0.4 mm (0.016 in) |
|
HEPA Filter |
Yes |
|
Extruder |
Dual, printing with the model and support material |
|
Hotend |
Dual |
|
Connectivity |
SD card (included) |
FILAMENTS
|
Dedicated for single extrusion |
Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT, Z-ULTRAT Plus |
|
Dedicated for dual extrusion |
Z-ESD, Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-SUPPORT Premium, Z-ULTRAT Plus |
|
External materials |
Applicable |
|
Support |
Mechanically removed – printed with the same material as the model in single extrusion
Soluble – printed with a different material than the model in dual extrusion |
|
Filament container |
Spool |
|
Filament diameter |
1.75 mm (0.069 in) |
IN THE BOX
PRINTING
|
Technology |
LPD Plus (Layer Plastic Deposition Plus) – advanced technology depositing melted thermoplastics with dissolvable support structures |
|
Layer resolution |
150-300 microns |
|
Minimal wall thickness |
450 microns |
|
Platform levelling |
Automatic measurement of platform points’ height |
TEMPERATURE
|
Heated chamber Yes |
|
Ambient operation temperature 15-30 °C (59-86 °F) |
|
Storage temperature 0-35 °C (32-95 °F) |
ELECTRICAL
|
AC Input 110 V ~ 4 A 50/60 Hz 240 V ~ 1.7 A 50/60 Hz |
|
Maximum power con- 300 W sumption |
|
Software bundle Z-SUITE |
|
Supported input file types .stl, obj, .dxf, .3mf, .ply |
|
Supported operating Mac OS Catalina and newer versions systems / Windows 7 and newer versions |
The real future of production lines
DEVICE
| Build volume* | 400 x 300 x 300 mm (15.7 x 11.8 x 11.8 in) |
| Nozzle diameter | 0.4 mm (0.016 in) |
| Extruder | Dual material |
| Extruder cooling system | Two fans cooling the extruder, radial fan cooling the print |
| Hotend | High-temperature dual hotend** |
| Platform | Heated; aluminum plate coated with PEI |
| Material Sensors | 2 x mechanical endstop, 2 x material weight sensor |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 7” IPS 1024 x 600 |
| Camera | Yes |
FILAMENTS
| Dedicated for single extrusion | Z-PEI 9085, Z-ULTRAT Plus |
|
Dedicated for dual extrusion |
Z-PEEK, Z-PEI 1010, Z-PEI 9085, Z-SUPPORT ATP, Z-SUPPORT ATP 130***, Z-SUPPORT High-Temp,

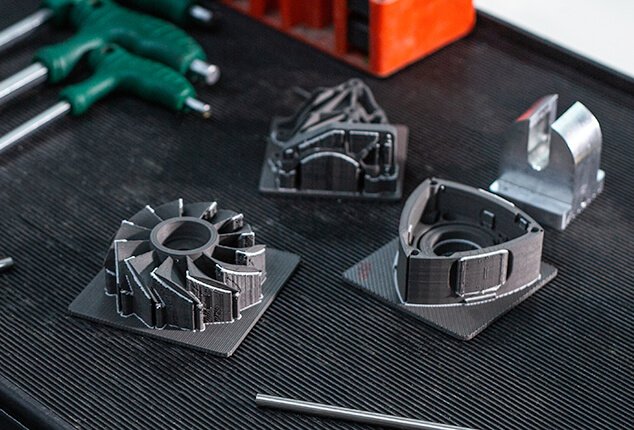

Z-ULTRAT Plus, Zortrax Full Metal Package 17-4 PH***, Zortrax Full Metal Package 316L*** |
| External materials | Applicable |
|
Support |
Mechanically removed – printed with the same material as the model
Break-away – printed with a different material than the model Soluble – printed with a different material than the model |
| Filament container | Spool |
| Filament diameter | 1.75 mm (0.069 in) |
IN THE BOX
PRINTING
|
Technology |
LPD Plus (Layer Plastic Deposition Plus) – advan- ced technology depositing melted thermopla- stics with break-away and dissolvable support structures |
| Layer resolution | 200-250 microns |
| Minimal wall thickness | 450 microns |
| Platform levelling | Automatic measurement of platform points’ height |
TEMPERATURE
| Maximum printing temperature (extruder) | 480 °C (896 °F) |
| Maximum platform temperature | 220 °C (428 °F) |
| Maximum build chamber temperature | 200 °C (392 °F) |
| Ambient operation temperature | 17-30 °C (63-86 °F) |
| Storage temperature | 0-35 °C (32-95 °F) |
ELECTRICAL
| AC Input 120 V ~ 13 A 50/60 Hz
200 – 240 V ~ 9.5 A 50/60 Hz |
| Maximum power 120 V – 1600 W
consumption 200 – 240 V – 2300 W |
SOFTWARE
| Software bundle Z-SUITE |
| Supported input file types .stl, obj, .dxf, .3mf, .ply |
| Supported operating Mac OS Catalina and newer versions
system / Windows 7 and newer versions |
Zortrax M300 Plus Print big models in one go
DEVICE
|
Build volume |
300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in) |
|
Nozzle diameter |
0.4 mm (0.016 in) – standard / 0.3 mm (0.012 in) / 0.6 mm (0.024 in) |
|
Extruder |
Single (compatible with demanding materials like TPU or nylon) |
|
Extruder cooling system |
Radial fan cooling the extruder block; two fans cooling the print |
|
Hotend |
Single, V3 |
|
Platform |
Heated; perforated and glass plates are applicable |
|
Material endstop |
Mechanical |
|
Connectivity |
Wi-Fi, Ethernet, USB |
|
Operating system |
Android |
|
Processor |
Quad Core |
|
Touchscreen |
4” IPS 800 x 480 |
|
Camera |
Yes |
FILAMENTS
|
Available Filaments |
Z-ABS, Z-ABS 2, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PCABS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT |
|
External materials |
Applicable |
|
Support |
Mechanically removed – printed with the same material as the model |
|
Filament container |
Spool |
|
Filament diameter |
1.75 mm (0.069 in) |
IN THE BOX
PRINTING
|
Technology |
LPD (Layer Plastic Deposition) – depositing mel- ted material layer by layer onto the build platform |
|
Layer resolution |
90-400 microns |
|
Minimal wall thickness |
450 microns |
|
Platform levelling |
Automatic measurement of platform points’ height |
TEMPERATURE
|
Maximum printing temperature (extruder) |
290 °C (554 °F) |
|
Maximum platform temperature |
105 °C (221 °F) |
|
Ambient operation temperature |
20-30 °C (68-86 °F) |
|
Storage temperature |
0-35 °C (32-95 °F) |
ELECTRICAL
|
AC Input 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
|
Maximum power 360 W consumption |
|
SOFTWARE
|
3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 2x Material Spool, Spool Holder, USB Memory Stick |

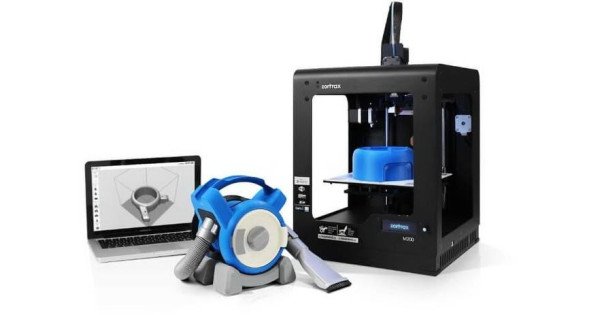

Zortrax M200 Plus Basically a reliable 3D printer
DEVICE
| Build volume | 200 x 200 x 180 mm (7.9 x 7.9 x 7.1 in) |
| Nozzle diameter | 0.4 mm (0.016 in) – standard / 0.3 mm (0.012 in)
/ 0.6 mm (0.024 in) |
| Extruder | Single (compatible with demanding materials like TPU or nylon) |
| Extruder cooling system | Radial fan cooling the extruder block; two fans cooling the print |
| Hotend | Single, V3 |
| Platform | Heated; perforated and glass plates are applicable |
| Material endstop | Mechanical |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4” IPS 800 x 480 |
| Camera | Yes |
FILAMENTS
|
Available Filaments |
Z-ABS, Z-ABS 2, Z-ASA Pro, Z-ESD, Z-FLEX,
Z-GLASS, Z-HIPS, Z-NYLON, Z-PCABS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT |
| External materials | Applicable |
| Support | Mechanically removed – printed with the same material as the model |
| Filament container | Spool |
| Filament diameter | 1.75 mm (0.069 in) |
IN THE BOX
| 3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, Material Spool, Spool Holder, USB Memory Stick |
PRINTING
| Technology | LPD (Layer Plastic Deposition) – depositing mel- ted material layer by layer onto the build platform |
| Layer resolution | 90-400 microns |
| Minimal wall thickness | 450 microns |
| Platform levelling | Automatic measurement of platform points’ height |
TEMPERATURE
| Maximum printing temperature (extruder) | 290 °C (554 °F) |
| Maximum platform temperature | 105 °C (221 °F) |
| Ambient operation temperature | 20-30 °C (68-86 °F) |
| Storage temperature | 0-35 °C (32-95 °F) |
ELECTRICAL
| AC Input 110 V ~ 5.9 A 50/60 Hz
240 V ~ 2.5 A 50/60 Hz |
| Maximum power
consumption 320 W |

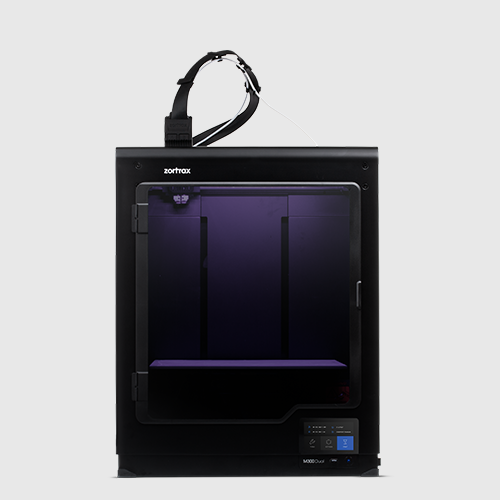

Industrial-class 3D printing on your desk
DEVICE
| Build volume | 265 x 265 x 300 mm (10.4 x 10.4 x 11.8 in) |
| Nozzle diameter | 0.4 mm (0.016 in) – standard, 0.6 mm (0.024 in) |
| Extruder | Dual, printing with model and support material |
| Extruder cooling system | Two fans cooling the extruder; radial fan cooling the print |
| Hotend | Dual |
| Platform | Heated; perforated and glass plates are appli- cable |
| Material Endstop | 2 x mechanical |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4” IPS 800 x 480 |
| Camera | Yes |
FILAMENTS
|
Dedicated for single extrusion |
Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-GLASS, Z-HIPS, Z-NYLON, Z-PETG, Z-PLA, Z-PLA Pro,
Z-ULTRAT, Z-ULTRAT Plus, BASF Ultrafuse® PAHT CF15, BASF Ultrafuse® PP GF30 |
|
Dedicated for dual extrusion |
Z-ABS, Z-ASA Pro, Z-ESD, Z-FLEX, Z-NYLON, Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-SUP- PORT ATP, Z-SUPPORT Premium, Z-ULTRAT,
Z-ULTRAT Plus, BASF Ultrafuse® PAHT CF15 |
| External materials | Applicable |
|
Support |
Mechanically removed – printed with the same material as the model
Soluble – printed with a different material than the model |
| Filament container | Spool |
| Filament diameter | 1.75 mm (0.069 in) |
TEMPERATURE
| Maximum printing temperature (extruder) | 310 °C (590 °F) |
| Maximum platform temperature | 105 °C (221 °F) |
| Ambient operation temperature | 20-30 °C (68-86 °F) |
| Storage temperature | 0-35 °C (32-95 °F) |
ELECTRICAL
| AC Input 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
| Maximum power 400 W
consumption |
SOFTWARE
| Software bundle Z-SUITE |
| Supported file types .stl, .obj, .3mf, .dxf (only 2D models), .ply |
| Supported operating Mac OS Catalina and newer versions / Win-systems dows 7 and newer versions |
IN THE BOX
TEMPERATURE
| Ambient 20-40 °C (68-104 °F) emperature |
| Storage temperature 0-35 °C (32-95 °F) |
|
ELECTRICAL

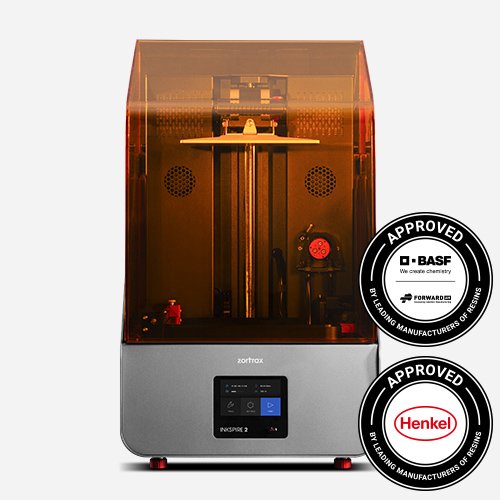

| Zortrax Inkspire 2, UV Resin, Bottle Holder, FEP Film (set), Wiper Set, Resin Sensor Set, Starter Kit |
